ArduECU MK1U Contents:

Qty 1: ArduECU Controller main board (your choice of MK1U-01, MK1U-02, MK1U-03, MK1U-04, MK1U-05, MK1U-06-- please choose your variant accordingly per ArduECU MK1U Variations section)
Qty 1: ArduECU Waterproof Housing (custom laser etched housing)
Qty 1: ArduECU 32 Pin Header (pre-soldered onto main board)
Qty 1: Housing Opener Tool
Qty 1: Quick Start Guide (links to online technical documentation and Arduino example programs)

NOTE: Does not include Connector Set, SD card or Accessory Kit. Please order these items additional if necessary. Due to shipping regulations, orders ship without the CR2032 battery for the RTC-- as we cannot ship batteries in the mail.

Features of the ArduECU MK1U Platform

Converts your standard Arduino Uno into a waterproof and more durable one
Uses standard Arduino Uno or Arduino Uno WiFi board which plugs in via on-board headers
On-board prototyping area for building a custom, waterproof, rugged, Arduino-based ECU
Rugged IP69K waterproof rated housing for use in harsh, moist environments
Breaks out Arduino pins to External waterproof header connector for interfacing to sensors and external hardware via your custom wire harness (wire harness with flying leads available)
Compatible with Standard Arduino IDE and the open-source initiative
Interface to serial communications via external header (or via internal USB , or wireless Wi-Fi)
Built-in XBee footprint for adding modules such as Wi-Fi, Bluetooth, 900 MHz, 2.4 GHz radio, GPS, Cellular Modem or other XBee compatible electronic interfaces
Built-In SD card slot for on-board data logging
Built-In Real Time Clock for Time-stamping your data
Built-In 3-Axis Accelerometer for motion sensing applications
Create IoT (Internet of Things) projects with ease via cloud-based dashboards for viewing or using your data (ex. Cayenne-mydevices, Ubidots, Thingspeak, etc.)
Order with or without Arduino Uno microcontroller boards to pick and choose your supplier
CE compliant for sales in EU

Power Requirements:

Recommended Operating Voltage: 7-12VDC
Operating Voltage Limits: 6-20VDC (extended limits when using Rugged Circuits RuggeDuino)
Microcontroller Operating Voltage: 5VDC

Reference Voltages:

5VDC Reference @ approx 500mA max. (250mA or less recommended)

Communications:

Serial (x1 capable internal and external)
SPI (x2 capable internal and external)
I2C (x1 capable internal and external)
USB (x1 capable via Internal USB connector)

Processor:

Atmega 328P CMOS, 10-Bit ADC @16MHz (with/without Wi-Fi)
32kB In-System Self Programmable Flash Memory, 1kB EEPROM, 2kB Internal SRAM
Write/Erase: 10k-Flash, 100k-EEPROM
Data retention: 20 years at 85C, 100 years at 25C

Inputs/Outputs:

14 Digital Inputs/Outputs (6 of which provide PWM output)
6 Analog Inputs (0-5VDC)
DC Current Per Pin: 40mA (max)
Additional Input/Output capability when using Rugged Circuits RuggeDuino add-on

Environmental Ratings:

Operating Temperature: -40F to 158F
Storage Temperature: -58F to 185F
Water Resistance: IP69K (per IEC660529)

Certifications:

CE (WEEE 2012/19/EU, RoHS 2011/65/EU, EMC 2014/30/EU, Radio Equipment Directive 2014/53/EU)

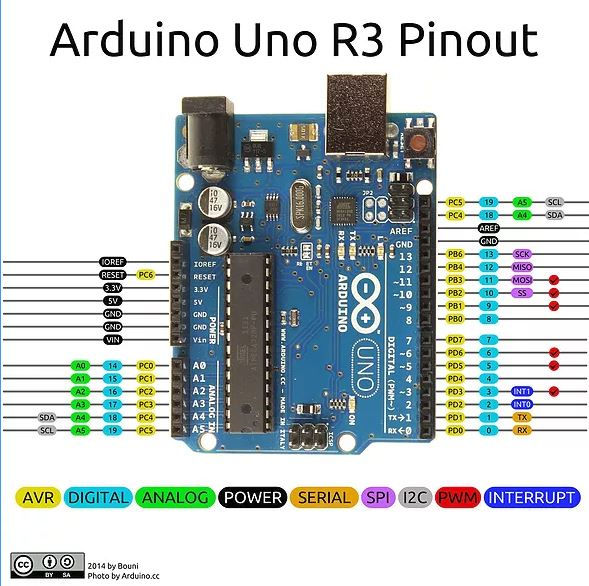

**Reference the full specs of the Arduino Uno R3 here.

**For those who would like to upgrade their unit to Rugged Circuits RuggedDuino, please reference the specs here (Note that the RuggeDuino is only available for sale in USA and Canada)

*Note that the above features are Variant dependent. Please choose your model accordingly per the chart "ArduECU MK1U Variations"

ArduECU MK1U Electronic Controller Unit

$49.00

1. Shipping cost added to order at Checkout.

2. Every unit is made-to-order. Current lead time is 3-5 business days. Please allow for 3-5 business days for processing your shipment.
ArduECU Controllers, Parts and Accessories:

All unused, undamaged, unopened hardware in its original packaging is eligible for a full refund within 30 days, although the customer is responsible for any return shipping. In the unlikely event that the product is opened and there is some sort of defect or quality issue, it may be replaced with new material or a refund may be issued in some cases if reported within 30 days from purchase date. Please contact Storme Technologies for any questions or to obtain an RMA number.
FCC AND CE NOTICE

PLEASE READ THIS NOTICE CAREFULLY BEFORE PURCHASING OR BEFORE USE!

As with many other open-source hardware platforms, this system operates under the Open Source Hardware Initiative and complies with Part 15.101e of Title 47of FCC rules by acting as a “subassembly” to a larger system. It is intended for use with a system that You-- the designer, programmer, engineer or hobbyist, will develop and integrate with using the ArduECU platform.

Although this device is acceptable for private use without additional FCC certification, please note that if you wish to develop and/or integrate this ArduECU product into a “finished good” to be used for resale, it may possibly require additional FCC and/or CE testing for resale, distribution and operation in your local area or region. Please contact us or your local FCC or CE testing lab with any questions.

By purchasing the unit, you agree that the ArduECU team and its company-- Storme Technologies, LLC is not to be held liable or responsible for the possible misuse, redistribution or unintended operation which could be caused by using any ArduECU device.

Please contact info@ardu-ecu.com for further information or if you have further questions regarding this notice.

Variation (Model Number)	Part Number-SKU	Comments
MK1U-01	ST300-1105	ArduECU MK1U (w/o Uno or assembled board. Just board and connector faceplate which is perfect for adding your own circuitry, hardware or other custom Uno Micocontroller)
MK1U-02	ST300-1106	ArduECU MK1U (w/ NO Uno Microcontroller -- supply your own. This is a DiY Solder Kit version)
MK1U-03	ST300-1107	ArduECU MK1U (Fully Assembled w/ NO Uno microcontroller-- supply your own)
MK1U-04	ST300-1108	ArduECU MK1U (Fully Assembled w/ Generic Uno Microcontroller Included)
MK1U-05	ST300-1109	ArduECU MK1U (Fully Assembled w/ Authentic Uno Microcontroller Included)
MK1U-06	ST300-1100	ArduECU MK1U (Fully Assembled w/ RuggeDuino Uno Microcontroller Included)
